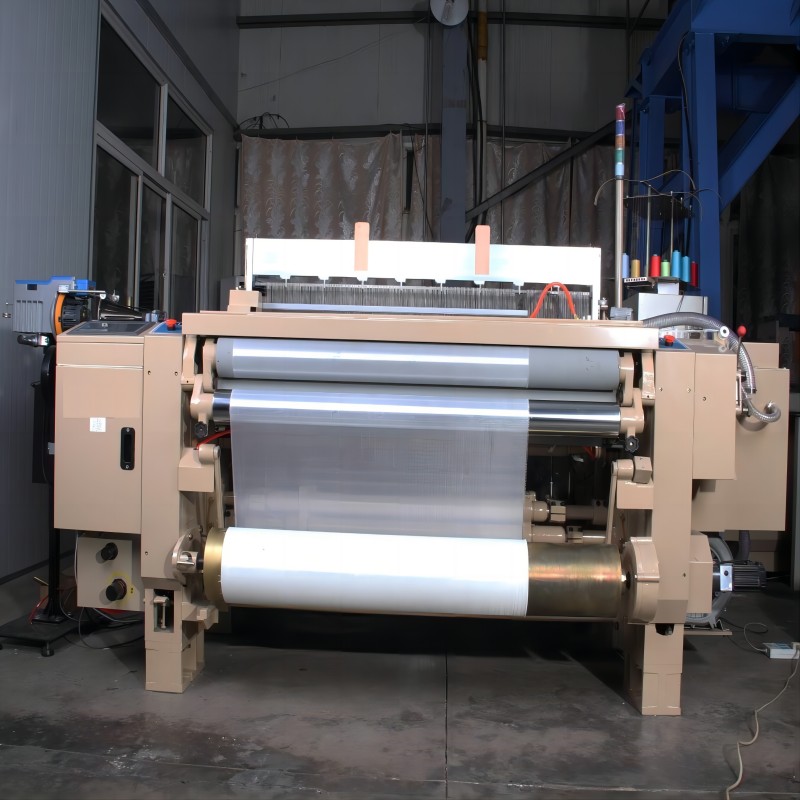

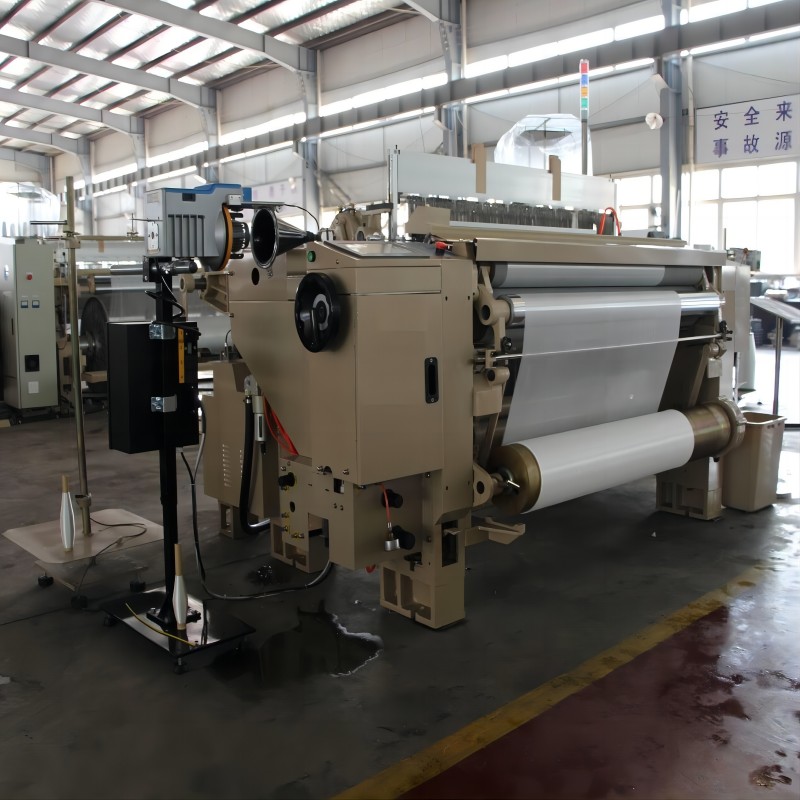

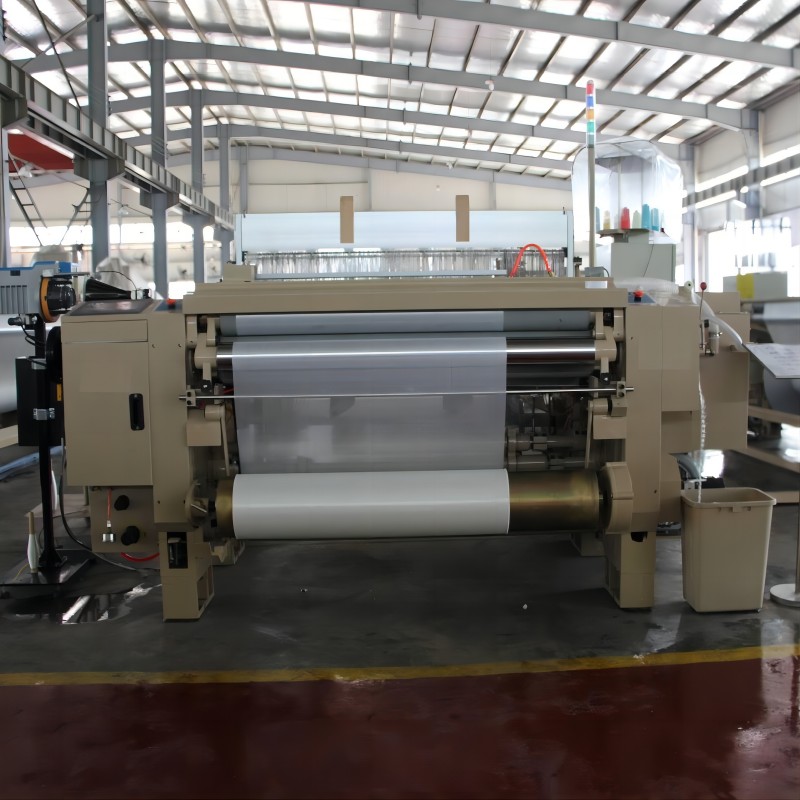

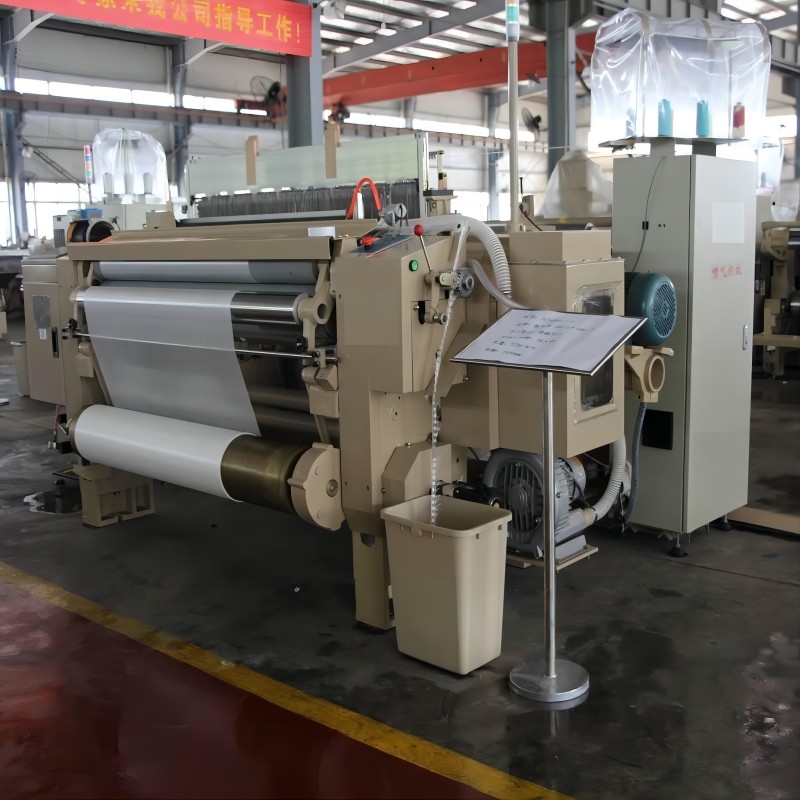

GA11-GF Glass fiber air jet loom

GA11-GF Small Weft Density Special Air Jet Loom

GA11-GF small weft density special top grade air jet loom is a high speed air jet loom specially designed for small weft density weaving characteristics.

Nominal reed width is 190cm-230cm,

The range of reed width is 0-800mm,

Speed is 500-750rpm (actual speed based on the specification of the fabric)、high efficiency 、weaving good quality fabric (with good quality of cloth edge formation)、the diameter of beam flanges isφ800mm(orφ914mm、φ1000),

The yarn count adapt to a wide range(filament、 spun)、weft density range from 0.08-10 pes/cm、out machine take up (diameter can reach 1400mm)、

The power of main motor1.5-2.0 KW,

reduce energy consumption, reduce labor cost, it is for weaving medical gauze and cord fabric.

SKU: GA11-GF Glass fiber air jet loom Category:

Characteristic：

1.Overall advantages: special design for glass fiber weaving, precision manufacturing, carefully assembly fine glass fiber special air jet loom, to ensure the stability and superiority of product quality.

2.Selvedge cutter mechanism adopt chopper mode, drag pad can rotate along the cloth surface, and its surface is uniformly worn to improve the service life and cloth selvedge unify.

3.Selvedge waste yam collection mechanism; waste yarn completely inhales the suction box, saves waste yarn, makes the cloth edge neat. avoids the cloth edge defect, reduces the yam consumption, avoids the hairiness to cause the air pollution, guarantees the machine clean and good working environment.

4.Constant tension batching mechanism: Fabric tension is controlled by sensor, which can guarantee the constant tension and high quality of cloth. Air expansion roller can be used for special varieties.

5.Pressure-regulating system: main air pressure can be adjusted automatically according to the weft arrival, which can reduce the weft breaking rate ,beneficial to improve the weaving efficiency and reduce the gas consumption.

6.Professional designed big warp beam and big batching mechanism reduce the number of doffing and corresponding increase weaving efficiency, flange diameter:1000mm, the maximum diameter of the batching cloth:1200 mm.
