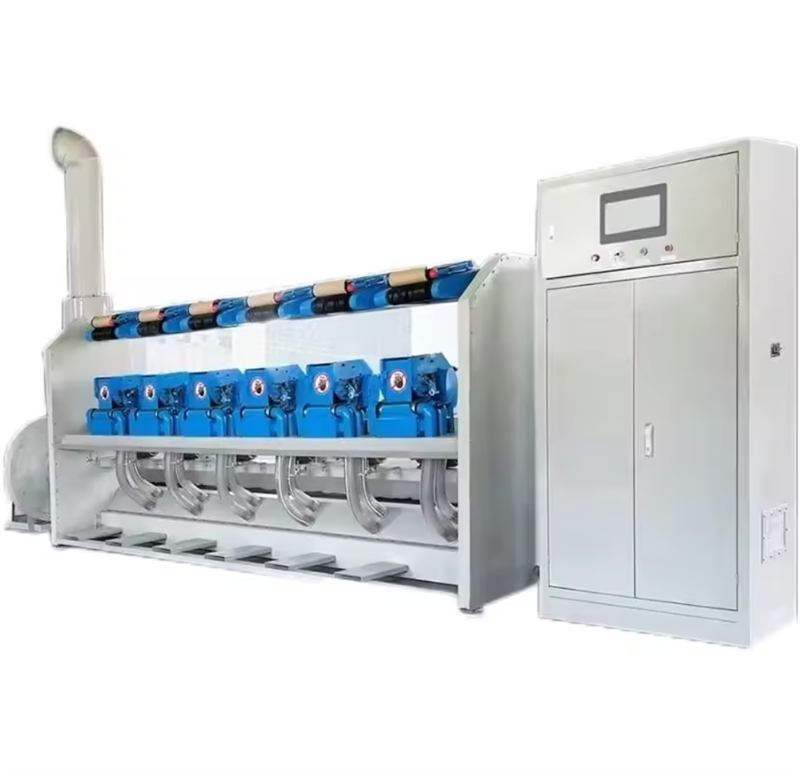

Friction Spinning Machine
Friction Spinning or DREF Spinning is a textile technology that suitable for spinning coarse counts of yarns and technical core-wrapped yarns.
Friction-spun yarns are bulky, with low tensile strength making them suitable for blankets and mop yarns, they can be spun from asbestos, carbon fibers and make filters was water systems.
Yarns such as Rayon and Kevlar can be spun using this method.
Technical parameters
No. | Specification | Number |
1 | machine name | Friction spinning machine |
2 | Spindle | 6 head |
3 | motor control | yes |
4 | suitable fiber | Cotton, man-made fiber, aramid fiber, hemp and recycled cotton etc |
5 | dust cage diameter | Φ83mm , length 220mm |
6 | Combing roller diameter | Φ178mm |
7 | Bobbin size | 78mmX235mm (Cylindrical type ) |
8 | Full bobbin weight | Max 9 kg |
9 | Spinning speed | Max 250rpm |
10 | Yarn count | 0.1-5 S |
